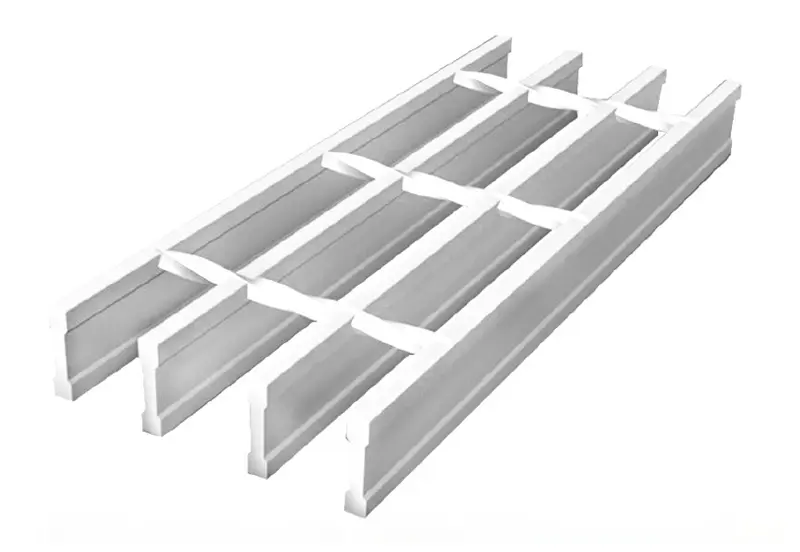

CE Certification ALUMINUM I BAR GRATING FROM 25MM TO 40MM Supplier, Manufacturer

Product Description

Applications
Application: Compared with plain steel gratings, the I bar type steel grating has similar loading capacity with same size plain steel gratings, but the weight is lighter. They can be used for special projects which require higher loading capacity but light weight. I bar steel grating can be used as walkways, catwalks, machine operation platforms, and stair treads.

Application area: Heavy machinery, light chemical industry, petrochemical industry, textile chemical industry, energy industry, refinery, port terminal, mining industry, and offshore engineering.

Product Advantages
  • Fast installation and simple maintenance work
  • Good ventilation & explosion-proof features
  • Long product life time and anti-slippery function
  • Less wastage of steel and cement, making it highly economic
  • Higher loading capacity combined with lower weight per square meter
Why Choose Us
  • Strong Production Capacity: Equipped with 12 forging machines across two production bases, our monthly output exceeds 4000 tons.
  • Rich Industrial Experience: As one of the earliest manufacturers in the field, we possess deep expertise in production management and quality control.
  • Multiple Models: We provide professional services and a wide variety of product models to suit different needs.
  • Strategic Location: Convenient geographic location close to major international ports for efficient logistics.
  • International Standards: Our products are approved to international standards and have been exported to numerous countries and districts globally.
Technical Parameters
Typical Height From 25mm to 40mm
Typical Thickness 5mm, 7mm
Mesh Sizes 30x100, 40x100, 30x50, 40x50, 34.3x38, 34.3x100, 25x100, 60x50, 35x100, 41x100
Typical Models JG2553/30/100IU, JG3253/30/100IU, JG3853/30/100IU, JG4553/30/100IU, JG5053/30/100IU, JG5075/30/100IU, JG5575/30/100FU, JG6075/30/100IU, JG6575/30/100IU, JG7575/30/100IU; also available with other meshes
Dimensions Any sizes below 7500x1000mm
Standard Sizes 5800X1000, 6000X1000, 6096X910, 6000X905
Finish Options Mill finish, hot dip galvanized, powder coating
Loading Capacity Depends on the specific model and span size. Professional calculation for specific models is available upon request.
Drawing Support Drawing services are available for both standard products and custom projects.
Packaging Standard export package secured with steel belts.
Delivery Time 15-20 days depending on quantity and specific model.
Fixing Methods Clip fixing is strongly recommended; welding fixing is also applicable.
FAQ
What are the main benefits of I-bar steel grating over plain steel grating?
I-bar steel grating offers a similar loading capacity to plain steel grating of the same size but is significantly lighter. This makes it ideal for projects requiring high strength without excessive weight.
What surface finishes do you provide?
We offer three primary finishes: mill finish (untreated), hot-dip galvanized for superior corrosion resistance, and powder coating for aesthetic or specific environmental needs.
Can I get custom sizes for my project?
Yes, we can produce any sizes below 7500mm x 1000mm. We also provide drawing services to ensure the product matches your project specifications exactly.
How is the I-bar grating usually installed?
We strongly recommend using clip fixing for easier maintenance and installation, although welding fixing is also a common and reliable method.
What is the typical lead time for an order?
Our standard delivery time is between 15 to 20 days, depending on the order quantity and the specific models requested.
Is the I-bar grating suitable for offshore environments?
Yes, it is widely used in offshore engineering, refineries, and petrochemical industries due to its excellent ventilation, explosion-proof properties, and anti-slippery function.
